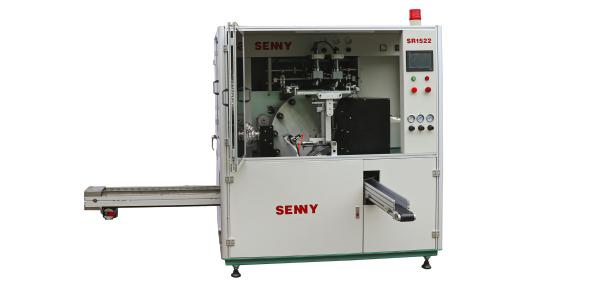

Mascara Bottle 2-Color Screen Printing Machine Without Mechanical
Or Optical Register
Syringe
& Eyebrow Pencil printing machine.pdf
Machine Application:
This machine SR1522 is specially designed for the object without physical positioning, and optical register is too much expensive.
We can use SR1522 to print 2 colors without any registration, the
position of chromotography or overlapping are very accurate.
SR1522 has 15 stations, 2 printing heads and one screen frame
divided into 2 printing images. When the machine rotate, it will
turn 2 stations each time, so after printing 1st color from left
screen, it will turn a circle to arrive the station under right
screen to print 2nd color. From 1st color to 2nd color, the
bottle's position didn't change, but we can make the two colors set
in the correct position by fixing the position of the pattern on
the screen.
SR1522 is suitable for screen printing UV ink of various colors on
small round tubes, pens, eyebrow pencils, lipsticks, syringes and
other products.
SR1522-F is suitable for screen printing UV ink of various colors
on square hard tubes.
The machine adopts an integrated turntable design with complete
functions, easy to operate.
The machine adopts well-known brand electrical components, PLC
control system and easy-to-use touch screen, with reliable
performance.
Technical specification:
| Machine Model | SR1522 | SR1522-F |
| Work Station | 15 | 15 |
| Printing Speed | Up to 60pcs/min | Up to 50pc/min |
| Product Diameter | 5-30mm | - |
| Product Length/Width | - | 10-30mm |
| Product Height | 50-120mm | 50-120mm |
| Max Printing Length | 100mm | 30mm |
| Max Printing Height | 100mm | 100mm |
