Mascara Bottle 2-Color Screen Printing Machine Without Mechanical
Or Optical Register
Syringe &
Eyebrow Pencil printing machine.pdf
Machine Application:
The machine SR1522 is specially designed for objects without
physical positioning, because optical registration is too costly.
With the SR1522 we can print 2 colors without any registration and
with very precise positions for color differences or overlaps.
The SR1522 has 15 stations, 2 print heads and 1 screen frame
divided into 2 printed images. As the machine rotates, it passes
through 2 stations each time, so that after printing the first
color from the left screen, it turns around to print the second
color in the station under the right screen. The position of the
bottle does not change from the first color to the second, but we
can set the two colors in the correct position by fixing the
position of the pattern on the screen.

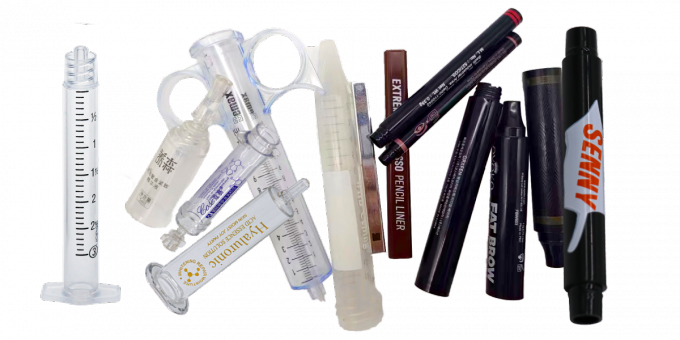

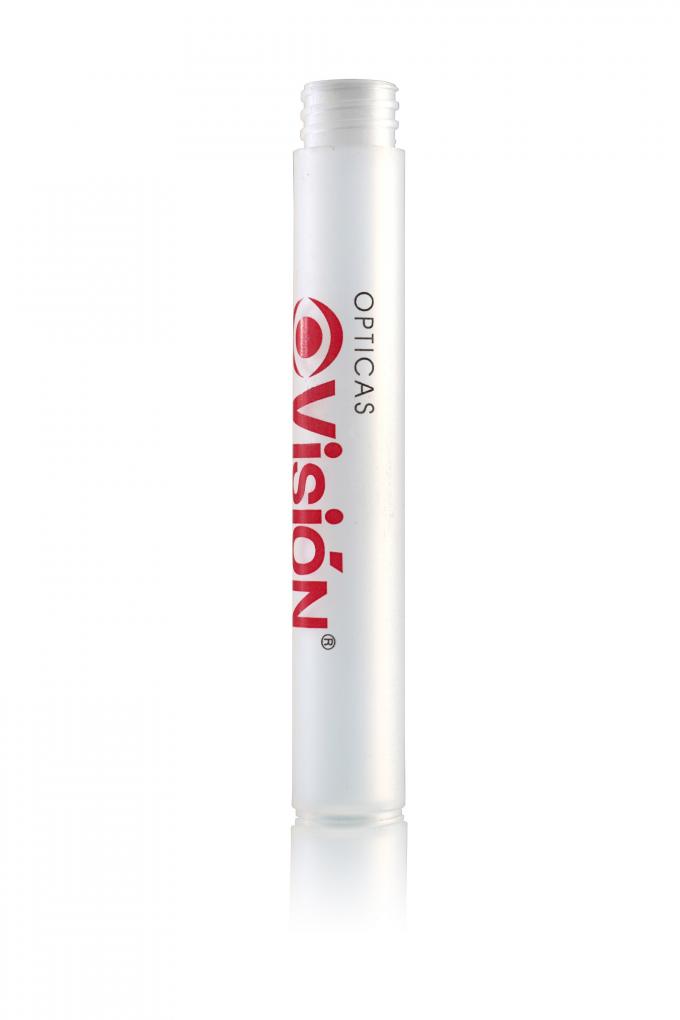

SR1522 is suitable for screen printing various colors of UV inks on
small round tubes, pens, eyebrow pens, lipsticks, syringes and
other products.
SR1522-F Suitable for screen printing various colors of UV inks on
square hard tubes.
The machine is designed with integrated turntable, fully functional
and easy to operate.
The machine adopts well-known brand electrical components, PLC
control system and easy-to-use touch screen for reliable
performance.
Technical specification:
| Machine Model | SR1522 | SR1522-F |
| Work Station | 15 | 15 |
| Printing Speed | Up to 60pcs/min | Up to 50pc/min |
| Product Diameter | 5-30mm | - |
| Product Length/Width | - | 10-30mm |
| Product Height | 50-120mm | 50-120mm |
| Max Printing Length | 100mm | 30mm |
| Max Printing Height | 100mm | 100mm |
