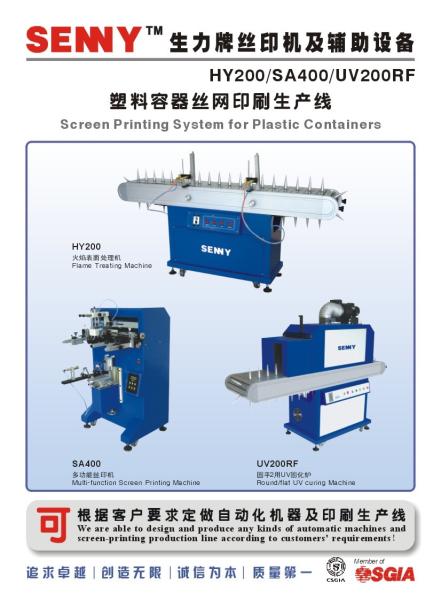

PP/PE Materials Used Flame Treating Machine With Electronic
Ignition System And High-Quality Fire Spraying System
The HY200 comes standard with tools to handle most types of objects
such as cylindrical, conical, oval and flat shapes. Cylindrical and
conical bottles are rotated 6 times in front of 2 tracking burners.
Together with our 3-row burner, this ensures an extremely high
degree of treatment, which is particularly important to ensure
excellent adhesion. The flame processor can be used to flame
objects in order to feed 2 or 3 semi-automatic printing presses at
the same time. The output rate is up to 3,000 pieces per hour.
Changes can be made in a few minutes.
Technical characteristics:
1. Stable rotary bottle and conveyor mechanism.
2. Transmission adopts imported speed-regulating motor and equipped
with high quality fire sprinkler system.
3. Electronic ignition system can be installed as required.
Application:
This machine is designed for pre-treatment of bottles before
printing. The flame cleans the surface of bottles and makes the ink
easy to adhere to the surface of plastic bottles. Mainly used for
PP and PE materials.
Technical Specifitions:
| Bottle mouth diameter | 10mm to 30mm |
| Max.Treatment speed | Up tp 3000 pcs/hr. |
Technical parameters:
| Power supply voltage | 220 V, 50 Hz power |
| Power consumption | 100W |
| Machine weight | 200kg |
| Curing Size | φ 320 * H300mm |
| Dimensions | L2000 × B500 × H1200mm |
Our machines are exported to many overseas countries, such as USA,
Korea, Malaysia, India, Pakistan, Germany, Dubai, UK, Philippines,
Singapore, Vietnam, Brazil, Uzbekistan and so on.
Customers from Canada personally check the quality before shipment.
Exhibition:
