Cosmetic Caps Border Printing Machine One Color Servo Silk Printing
Machine Supplier
Round Jar &
Cap printing machine.pdf
Machine Features:
Automatic Feeding System
The machine can be installed according to the customer's needs and
is equipped with a variety of automatic feeding systems, such as
vibrating trays and rotary feeders.
Surface Treatment System
The machine can be installed with surface treatment system
separately according to customers' needs, which can effectively
solve the surface treatment problems of various plastic products,
easy to operate and meet different needs.
Plastic products generally need surface treatment before printing
to destroy the molecular structure of the surface and enhance the
adhesion of the printed pattern; there are two kinds of surface
treatment processes, one is flame treatment and the other is corona
treatment.
No Part No Print System and Adjustable Printing Head System
If the machine realizes that there is no product on the transfer,
the printing system will not work when the fixture reaches the
printing position.
Depending on the product, the printing head stroke and the angle of
the initial printing action can be adjusted to achieve the best
printing results.
UV Curing system / LED Curing system
Customers can choose different curing systems according to their
needs.
UV curing technology is mature, low lamp replacement cost, low
maintenance cost.
Compared with traditional high-pressure mercury lamps, LED curing
is characterized by soft light output, long life, energy saving,
safety and environmental protection, wide irradiation area, small
space occupation, and uniform light spot, etc. However, its
disadvantage is the high maintenance and replacement cost.
Machine Application:

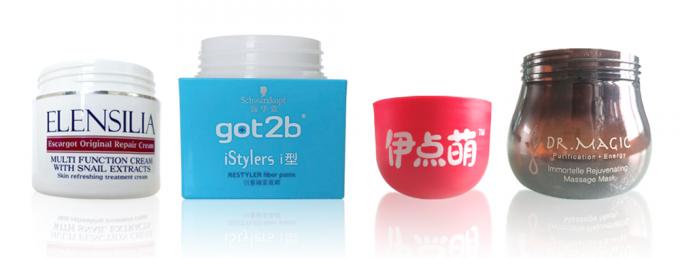

- This machine is suitable for screen printing various colors of UV
ink on round cans, bottles and other products.
- The machine is designed with integrated turntable, fully
functional and easy to operate.
- The machine adopts well-known brand electrical components, PLC
control system and easy-to-operate touch screen, reliable
performance.
Machine Parameters:
| Model | SR818 | SR818-3S |
| Work Station | 8 | 8 |
| Printing Speed | Up to 50pcs/min | Up to 60pcs/min |
| Product Diameter | 20-80mm | 20-80mm |
| Product Height | 20-60mm | 20-200mm |
| Max Printing Length | 250mm | 250mm |
| Max Printing Height | 60mm | 160mm |
