    1800pcs/Hour Automatic Hot Stamping Machine For Cylindrical Containers

    Ask Lasest Price
    Brand Name : Senny
    Model Number : SRS1249-DR3CH
    Certification : CE SGS
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 10PCS /Month
    Delivery Time : One Month
    • Product Details
    • Company Profile

    1800pcs/Hour Automatic Hot Stamping Machine For Cylindrical Containers

    3 Colors Screen Printing Machine With Auto Hot Stamping Device, Servo Drive More Stable For Cylindrical Containers


    Catalog 04_compressed.pdf


    Technical Specifications


    ModelSRS1249-DR3CH
    Printing stations4 (3 printing colors and 1 hot stamping color)
    Printing speedUp to 45pcs/min
    Max. printing areaL250mm X W160mm
    Product height250mm
    Air presser6-7 bar
    Power380V 50/60HZ

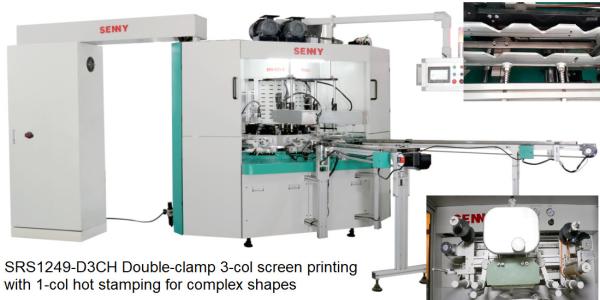

    250x160mm 1800pcs/Hr Auto Hot Stamping Machine For Cylindrical Containers 0


    Application:


    This machine is a multifunctional rotary multi-color screen printing machine, which can be equipped with hot stamping device. It is mainly used for printing patterns and characters on round plastic bottle caps, glass tubes, wine bottle caps, tube products, lighters, rubber tubes, lipsticks and so on. It is characterized by simple operation, accurate positioning, high degree of automation and fast printing speed.


    Features:


    1. The machine can be designed as press station, plasma treatment system structure.
    2. Innovative double-jig transmission system is very smooth when passing bottles, easy to change between different types of products and easy to operate.
    3. Adopting PLC control and touch screen display, equipped with all kinds of monitoring system to ensure the stability and safety of the machine when running at high speed.
    4. According to the product characteristics, the machine can be equipped with automatic loading and unloading, positioning, no bottle no printing and other functions.
    5. All parts are from Germany, USA and Japan to ensure the machine quality and printing stability.
    6. Support three languages: Chinese, English and Spanish.
    7. Machine can be customized according to special products.


    Printing samples

    250x160mm 1800pcs/Hr Auto Hot Stamping Machine For Cylindrical Containers 1


    About us:

    Senny Printing Equipment Co., Ltd insists in treating people with honesty and sincerity, and we believe this is the basis of our cooperation. We always put innovation in priority and continuously develop new products to satisfy our customer.

    250x160mm 1800pcs/Hr Auto Hot Stamping Machine For Cylindrical Containers 2


    250x160mm 1800pcs/Hr Auto Hot Stamping Machine For Cylindrical Containers 3
