4L And 5L Engine Oil Flat Drums Multicolor Screen Printing Machine
High Speed
Applications:
Mainly used for 1-4 color screen printing on 4L and 5L drums.
Features:
1. Using PLC programmable controller and easy-to-use touch screen,
the machine is easy to operate and has stable performance.
2. The machine speed can be adjusted according to the printing
needs to meet different printing requirements.
3. The feeding conveyor belt of the machine adopts anti-abrasion
belt, which can protect the surface of the oil drum from abrasion.
4. The flame surface treatment has automatic continuous flame
spraying function, which can meet different printing speeds, and is
equipped with safety anti-tempering device.
5. The machine adopts precision divider drive, simple maintenance
and smooth transmission.
6. It has the function of container inflation and pressure
adjustment to ensure the thickness of oil drum and fine printing
quality.
7. The squeegee pressure is adjustable, and the squeegee part has
the function of X, Y, Z, Z-R direction and angle micro-adjustment.
8. The machine has the function of advance printing, which can meet
the high-speed printing requirements of customers.
9. The machine is equipped with high strength UV curing system.
Technical Specification:
| Max. printing area | 300×250mm |
| Max. screen frame size | 550×350mm |
| Max. drum height | 350mm |
| Max. drum width | 300mm |
| Max. printing speed | 5000pcs/hr |
| Power voltage | 380V 50Hz |
| Power consumption | 25KW |
| Air pressure | 5-7 kg/cm2 |
| Machine weight | 4000KG |
| Dimensions | L8200×B3000×H1700mm |

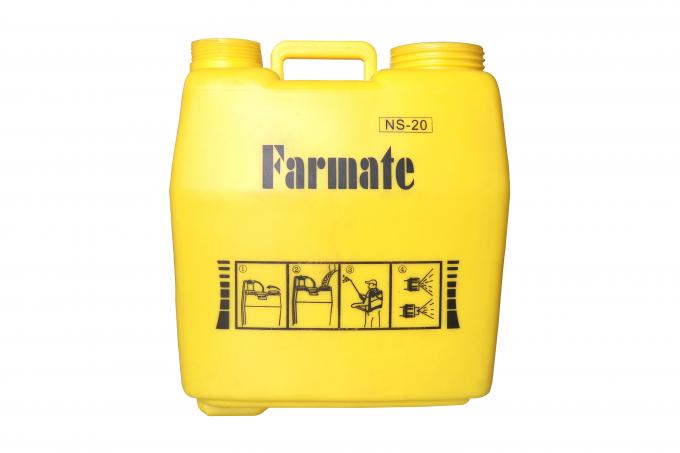

Printing samples
