Aluminium Plate Flat Screen Printing Machine For Max Printing Area
600mm X 900mm
Machine features:
1. Vertical structure, PLC human-machine interface control, touch
setting machine operation parameters.
2. Servo lifting, servo printing design, fast and stable, accurate
positioning.
3. Lifting, sliding and printing head all adopt square guide rail
to ensure printing precision.
4. Multiple printing operation modes, adjustable speed, fast
operation, stable and smooth, precise positioning.
5. Precision guide rail printing head, printing head can be
stretched back and forth, so that the printing ink layer is more
uniform, easier to pick and place the workpiece
6. Printing stroke and printing thickness are set on the touch
screen, and the table is self-locking with fine adjustment, easy to
adjust.
7. Lifting and ultra-long stroke design, more convenient to pick
and place the workpiece.
8. Inching, single cycle and automatic functions, easy to switch.
9. Various emergency safety devices. Ensure the safety of
operators.
10. Starting mode: PLC or foot switch.
Application:
SBF70100-D is suitable for high-precision flat printing on various
materials, especially for high-precision printing on circuit
boards. Such as: metal, glass, ceramics, plastic, wood, leather and
other materials. Widely used in: electronic and electrical
appliances, advertising, packaging printing, sports equipment,
toys, stationery gifts and other industries. Products such as a
variety of glass, PCB, LCD, liquid green oil, cold light, film,
keyboard, acrylic, cell phone panels, touch screen, light guide
plate, diffusion board, nameplates, ceramics and other products of
precision flat screen printing.
Specification:
| Max.printing area | L900mm*W600mm |
| Max screen frame size | L1000mm*W700mm |
| Max thickness of article | 200mm |
| Positional accuracy | less than 0.02mm |
| Power supply | 220V 50HZ |
| Air pressure | 5-7 BAR 20L/min |
| Machine size | 1130*1360*1700mm |
| Machine weight | 380kg |
| Printing speed | 900 PPH (It will be different according to different articles) |
About us:
Senny owns a 98 employees group with full of creativity. The research and development
department has twelve engineers, five of them are senior
professional post, and we have signed a long-term talent oriented
training plan with Wuhan Polytechnic University to enlarge our
team.

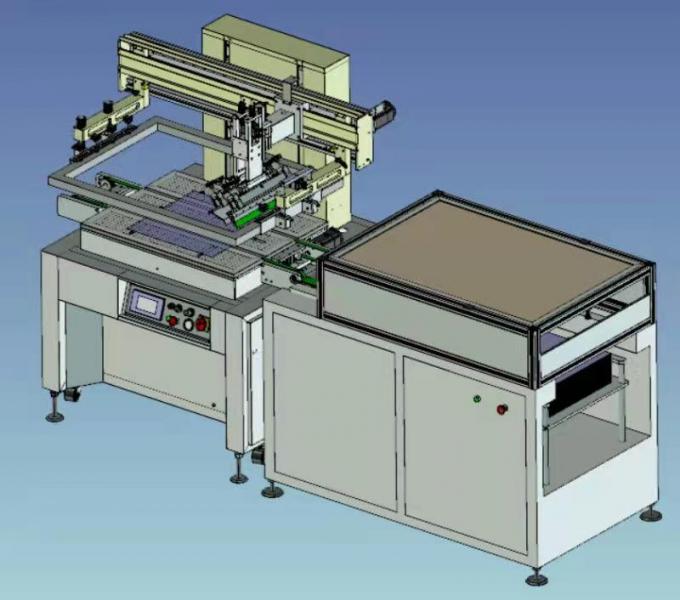

Remarks This machine is semi-automatic, it can be loaded and
unloaded by manpower and placed on the shelf for natural drying. We
can also design it according to customer's requirement to reduce
manpower ---- Automatic loading, conveyor transfer, automatic
registration, printing and automatic transfer to infrared curing
machine for drying.
