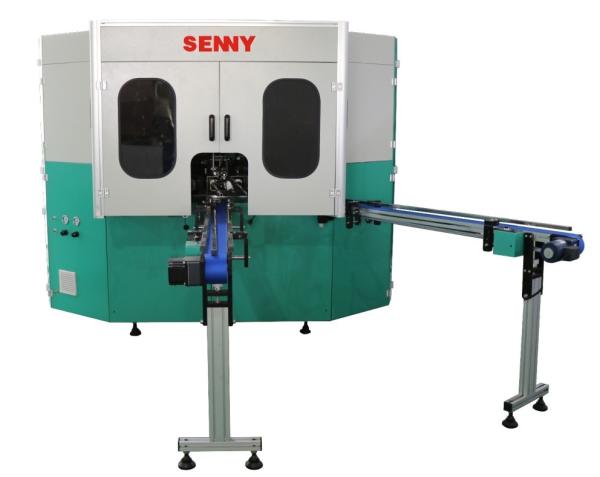

Glass/Metal Bottle CNC Screen Printer Serigraphic Works For Wine,
Aerosol Can
Senny offers a wide range of models for 360-degree 1-6 color
printing on the surface of glass/metal bottles/cups/cans of various
shapes.
The series of presses are driven by digital servo motors and can be
integrated with various printing modes to print high quality
graphics and text.
The fully automatic screen printing machine driven by CNC servo
motor can print UV ink in different colors on plastic bottles,
glass bottles, metal bottles, cans and lids of various shapes (e.g.
round, oval, triangle, square, pentagon, etc.) in 360 degrees.
The bottles are rotated in a fixture to different workstations to
complete the functions of feeding, color registration, surface
treatment, multi-color printing, UV curing and discharging. High
printing accuracy, small distance from the printed pattern to the
bottom of the bottle, not easy to damage the product surface.
UV curing can be partially or fully utilized with the LED-UV curing
system to save energy.
A screen printing and UV curing station can be eliminated and a hot
stamping system can be installed, allowing screen printing and hot
stamping to be done at the same time.
The last screen printing and UV curing station can be eliminated
and a visual inspection of the finished product can be installed,
allowing for the separation of acceptable and unacceptable products
after discharge.
The machine is equipped with a remote management function, which
allows you to understand or solve machine malfunctions and
technical problems remotely for your customers, wherever the
network is connected.
Parameters
| Model | SRS829-D | SRS1033-D | SRS1249-D | SRS1669-D | SRS829-DR | SRS1039-DR | SRS1249-DR | SRS1669-DR |
| Printing Stations | 2 | 3 | 4 | 6 | 2 | 3 | 4 | 6 |
| Product diameter | Complex shapes(20-100mm) | Cylindrical(20-100mm) |
| Printing Speed | Up to 45pcs/min |
| Max Printing Area | L250mm X W160mm |
| Product Height | 250mm |
| Air Pressure | 6-7 bar |
| Power | 380v 50/60HZ |
