1 To 12 Color Automatic Screen Printing Machine For Pails, Can Be
Used For 5~30 Liter, Round Bucket Screen Printer
Catalog
02_compressed.pdf
Application:
This screen printing machine can screen print plastic drums from
single color to multi-color in one step. It is designed for screen
printing of large and round plastic containers, which are mainly
used in chemical and food industries. The machine features a CAM
screw-connection structure for greater efficiency, precision and
versatility with integrated functionality. The ASP/B carriage is
equipped with a user-friendly system that ensures easy adjustments
and operation, as well as a mechanical feeder, a flame unit, a
register system, a no-parts-no-press function, a UV curing system
and an unloading device.
The SL700 printing system is only suitable for round (cylindrical)
plastic drums with a volume of 5-30 liters, widely used in chemical
and food packaging.
Technical Specifications:
| Model | SL700 |
| Printing area | L900XW250mm |
| Screen frame size | L1200XW400mm |
| Cylindrical container diameter | Φ160 - 350mm |
| Container height | 200-400mm |
| Max. printing speed | Up to 1000pcs/hr |
Features:
1. The innovative drive system is very smooth when passing through
containers, easy to change between different types of buckets and
easy to operate.
2. The machine can print up to 12 colors, each module machine is
driven independently and synchronously, accurate color registration
between colors, stable and reliable performance.
3. It adopts PLC control and touch screen display, and is equipped
with various monitoring systems to ensure high-speed and stable
operation of the machine.
4. According to the product characteristics, it can be equipped
with automatic loading and unloading, positioning, flame treatment,
dust removal, automatic color registration, no bottle without
printing, UV curing system and other functions.
5. All the parts are from Germany, USA and Japan to ensure the
quality and printing stability.
6. Machine can be customized according to special products.

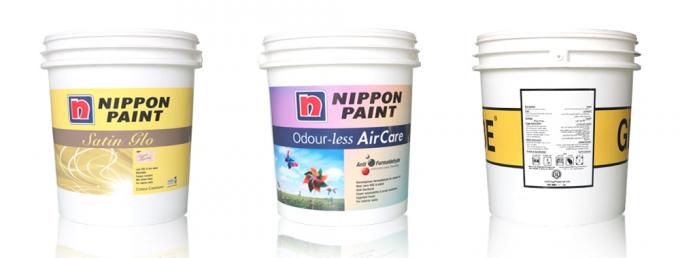

Printing samples
