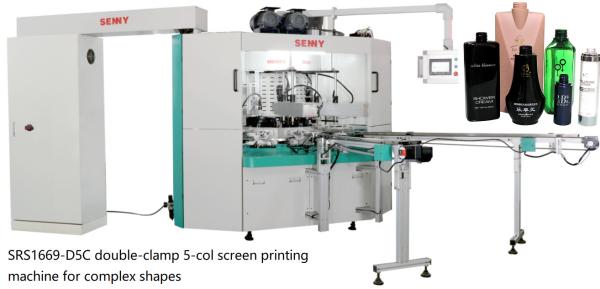

Automatic Hot Stamping Machine Heat Transfer And 4-Col Silk Screen
Printer Servo Drive For Complicated Shape Of Bottles
Catalog
04_compressed.pdf
Technical Specifications (How many colors can be printed using this
servo drive rotary screen printing machine)
| Model | SRS829-D | SRS1033-D | SRS1249-D | SRS1669-D | SRS829-DR | SRS1039-DR | SRS1249-DR | SRS1669-DR |
| Printing stations | 2 | 3 | 4 | 6 | 2 | 3 | 4 | 6 |
| Product diameter | Irregular shapes 20-100mm | cylindrical 20-100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air presser | 6-7 bar |
| Power | 380V 50/60HZ |
Application:
This machine is a multifunctional rotary multi-color screen
printing machine. It is mainly used for printing patterns and texts
on cylindrical plastic bottle caps, cylindrical glass tubes,
cylindrical wine bottle caps, tube products, lighters, rubber
tubes, polywood, lipsticks, flat surfaces and so on. It is
characterized by simple operation, accurate positioning, high
degree of automation and fast printing speed.
Features:
1. Few tools, simple operation, low maintenance cost and high
accuracy. High precision of color-to-color register.
2. Controlled by PLC and touch screen, equipped with various
monitoring systems to ensure the stability and safety of the
machine when running at high speed.
3. According to the characteristics of the products, the machine
can be equipped with various functions, such as
Vertical or horizontal feeding and discharging,
Orientation,
Anti-static device
Flame pre-treatment,
Automatic pre-register and main register,
No item no print,
Conventional UV or LED UV curing systems, etc.
Option to integrate different finishing processes such as hot
stamping devices, labeling, heat transfer and varnishing.
Screen heating for thermoplastic inks.
All components come from Germany, USA and Japan to ensure machine
quality and print stability.
We can customize the machine for special products.
UV curling device
Printing samples
