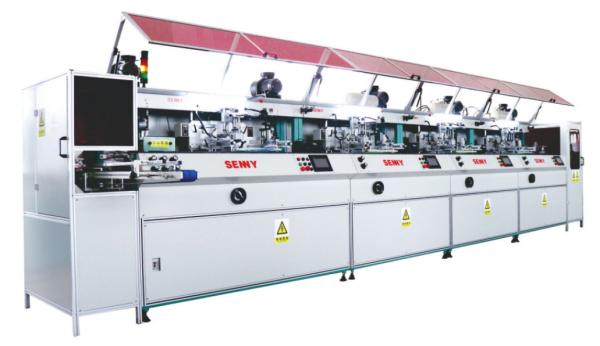

Squre/Round/Oval Plastic Or Glass Bottles Multicolor Screen
Printing Machine, Can Be Configurated With Labeling System
SL1788
introduction.pdf
Technical Specifications:
| Max. printing area | L300 x W250mm |
| Cylindrical container diameter | Φ20-Φ120mm |
| Square or Oval product diameter | Φ20-Φ100mm |
| Width elliptical or flat container | 20-130mm |
| Container height | 50-300mm |
| Max. printing speed | Up to 6000pcs/hr |
SAFE EFFIENCY INNOVATIVE
* SLS1888 servo-driven automatic machine for screen printing of
containers of plastic or other materials with round, oval, square
or rectangular cross sections, with centered or off-centered necks
and easy change of different shapes in the printed cross section.
* Shape changeover: 30 minutes per machine, from cylindrical to
oval or flat, with 360-degree printing.
* Linear unit structure combinations: Up to 8 inline colors are
optional.
* Machines are PLC and touch screen operated for easy operation
with an excellent warning system.
* Feeding components include: Feeding belt and robot hand for side
selection.
* Side-selection mainframe is driven by servo motor for rotary
dedusting and flame treatment of round containers.
* Flame treatment for round, oval and rectangular containers.
* Pre-positioning device
* Secondary positioning device for printing.
* Electronic lifting device for squeegees
* UV curing by rotation of round containers driven by stepper
motors.
* Electronic UV system: Device with freely adjustable light
(alternative to LED UV curing systems)
* Auxiliary machine part with optional oval and square container
sides
* Output parts: robot hand and belt for standing up containers
* CE-compliant.
The SLS1888 can be configured with a plasma processing system, a
labeling system, a hot stamping system or a UV-LED system,
depending on the customer's specific requirements.
