1-3 Color Fully Automatic Screen Printing Machine With Independent
PLC Program And Touch Panel Control System

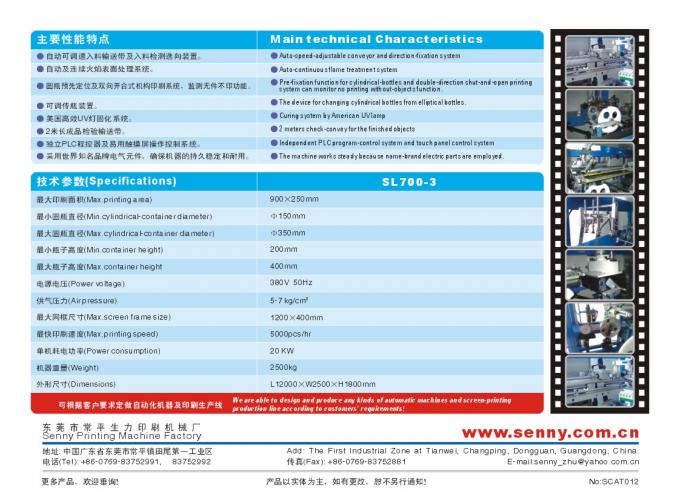

Technical Specifications:
| Model | SL700 |
| Cylindrical container diameter | Φ150-Φ350mm |
| Cylindrical container height | 200-400mm |
| Power voltage | 380V 50Hz |
| Air Pressure | 5-7kg/cm2 |
| Max. screen frame size | 1200 X 400mm |
| Power consumption | 20KW |
| Machine weight | 2500kg |
| Max. printing speed | 5000pcs/hr |
| Dimension | L12000XW2500XH1800mm |
Application:
The SL700-3 printing system is only suitable for round
(cylindrical) plastic drums with a volume of 5-30L, widely used for
chemical and food packaging. We can customize the machine to print
up to 12 colors according to your requirements.
Features:
1. Automatic speed-adjustable conveyor belts and direction-fixing
systems.
2. Automatic continuous flame treatment system
3. Pre-fixing function for cylindrical bottles and bi-directional
switching printing system that monitors the object-free printing
function.
4. Device for converting from oval to cylindrical bottles.
5. Curing system with Americal UV lamps.
6. 2 meters long inspection well for finished products.
7. Independent PLC program control system and touch screen control
system.
8. Adopting famous brand electrical components for stable machine
operation.
Screen printing device
Blanking device
Printing samples
