Fully Automatic Screen Printing Chain Machine for Liqour / Wine /
Beer Glass Bottle and oil filter
Application:
The SC1524 is designed for one-color screen printing on a variety
of glass containers such as wine bottles, beer bottles, beverage
bottles, glasses, goblets and oil filters. It can also be designed
for three-color or four-color printing as required. It is widely
used in domestic and global markets. The project has small
investment and quick return. Therefore, it is accepted by many
companies.
Features:
1. It uses a very simple technique to solve the problem of register
without locating points. The key technique is to print with
hot-melted, high-temperature glass ink and then cauterize it in a
high-temperature oven so that the ink becomes one with the glass.
The image is firm and the bottle can be washed repeatedly to
prevent environmental pollution and save cost.
2. Innovative transmission system is very stable in transferring
bottles, easy to change between different types of bottles and easy
to operate.
3. Adopting PLC control and touch screen display, equipped with all
kinds of monitoring system to ensure high speed and stable
operation of the machine.
4. According to the product characteristics, the machine can be
equipped with various functions such as automatic loading and
unloading, no bottle no printing and so on.
5. All parts come from Germany, USA and Japan to ensure the machine
quality and printing stability.
6. Support Chinese, English and Spanish languages.
7. Machine can be customized according to special products.
Main Components:
- Standing feeding belt
- Flat conversion feeding mechanism
- Divider driving start and stop
- Chain and v-plate conveying products
- Automatic screen printing
- High energy UV curing
- Discharging conversion standing belt
- Standing discharging conveyor belt, which can be connected with the
production line.
Technical Specifications:
We designed 2 different machines SC128 and SC1524 according to
cylindrical container's diameter and height and printing speed:
| Model | SC128 | SC1524 |
| Cylindrical container diameter | Φ30 - Φ100mm | Φ30 - Φ130mm |
| Container height | 50 - 300mm | 50 - 350mm |
| Max. printing speed | Up to 3000pcs/hr | Up to 2400pcs/hr |

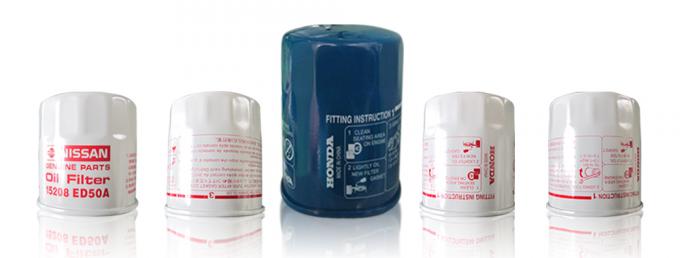

Printing samples
