PLC Control Automatic Label Applicator 300pcs/min

Ask Lasest Price
Brand Name :	SENNY
Model Number :	ST-801-Q
Certification :	CE SGS
Price :	Negotiation
Payment Terms :	T/T and LC
Supply Ability :	100pcs /month
Delivery Time :	ONE MONTH

Add to Cart

Product Details
Company Profile

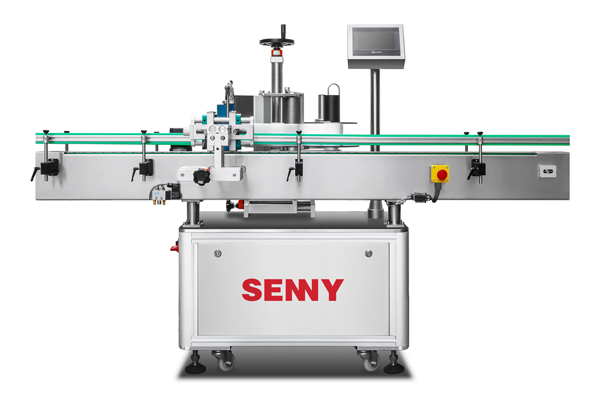

PLC Control Automatic Label Applicator 300pcs/min

Automatic Air Cylinder Can Labeling Machine Label Applicator Label Pasting Machine, High-Precision Labeling

Technical Specifications:

The disc rotation labeling (or cylinder positioning) controlled by servo motor can realize fast labeling.
One or two labels can be pasted according to the setting.
The labeling bottle is positioned on three sides, which can achieve high-precision labeling, and won’t be affected by the uneven bottom.
The rubber wheel is used to rotate the label, and the transparent label is pasted without bubbles.
The whole electric system is controlled by PLC, can adopt English touch operation, which is very convenient and intuitive.
All stainless steel round corner cabinet, convenient, clean and beautiful

Application:

ST-801-Q Vertical positioning and labeling machine for cylindrical bottles. It is suitable for full winding, partial winding and fixed-point labeling on the circumference of industrial round bottle products such as daily chemical, medicine, health care products, food, chemical industry, etc. This machine can be used for automatic labeling of objects with different diameters and heights.

Product Features:

Suitable bottles:	cylinderical bottles with diameter Φ20-90mm, height 30mm-160mm (The ration between diameter and height should be less than 1:3, such as 2ml~20ml penicillin bottle, 50~500ml infusion bottle)
Labeling speed:	300pcs/min(depends on the diameter of bottles and labels’s sizes)
Labeling accuracy:	The axial position deviation of the bottle is ±0.5mm, and the front and rear height deviation is ±1.0mm
Power Supply:	200V±10%
Relative temperature of working environment:	-20~50℃
Relative humidity of working environment:	15~95%
Working hours:	24 hours continuous operation under good maintenance conditions
