Silk Screen Automatic Printing Machine For Plastic, Glass, Metal
Cans, Bottles, Cups, Caps And Hard Tubes
SL1788
introduction.pdf
SL1788 is a modular concept machine with a drive and modules that
can be added on up to 12 colors. The system comes complete with an
automatic un-scrambler or an in-feed conveyor with pick and place,
plus a heavy duty extended take-out conveyor.
Print Head designed for round, oval, square, complex shapes
Technical Specifications:
| Machine running speed | Up to 85pcs/min (printing speed varies from bottles to bottles) | | Product height | 20-300mm | | Round bottle diameter | 20-120mm | | Flat bottle radius | 50-250mm | | Flat bottle width | 20-160mm | | Maximum printing area | length 300* height 200mm | | Gas supply | 0.15mpa | | Air pressure requires | 6-7 BAR | | Voltage requirement | 3-phase 5-wire 380V 50/60Hz | | Rated power | 7KW(1 color ) * N colors | | Machine weight | Main machine-1200kgs; Auxiliary machine-1000kgs | | Machine size | Main machine-L 2900mm * W 1200mm * H 2000mm(excluding feeding and
uploading convey belt) Auxiliary machine-L 1190mm * W 1200mm * H 2000mm |
|
Fully automatic screen printing machine (1-12 colors) for containers: SL1788-1C (12C)
1. Machine features: a great achievement of nearly 30 years of machine design
experience. It integrates multiple functions such as incoming and
outgoing materials, surface treatment, screen printing and UV
curing. The linear combined module structure can realize an
integrated production line of up to 12 colors. Precision design and
manufacturing can realize electromechanical synchronization,
perfect automation, simple and convenient man-machine dialogue
operation, and a new appearance of incoming and outgoing materials
and host safety protection, the new transmission design makes the
machine run stably and quickly, easy to transfer within different
shape of containers, easy to operate and save manpower. The
technology is in the leading position in China.
2. Applicable industries: cosmetic, daily chemical, food, pharmaceutical, health products,
baby products, automotive supplies, cleaning supplies , alcohol,
glass glue, toy, sporting goods and so on.

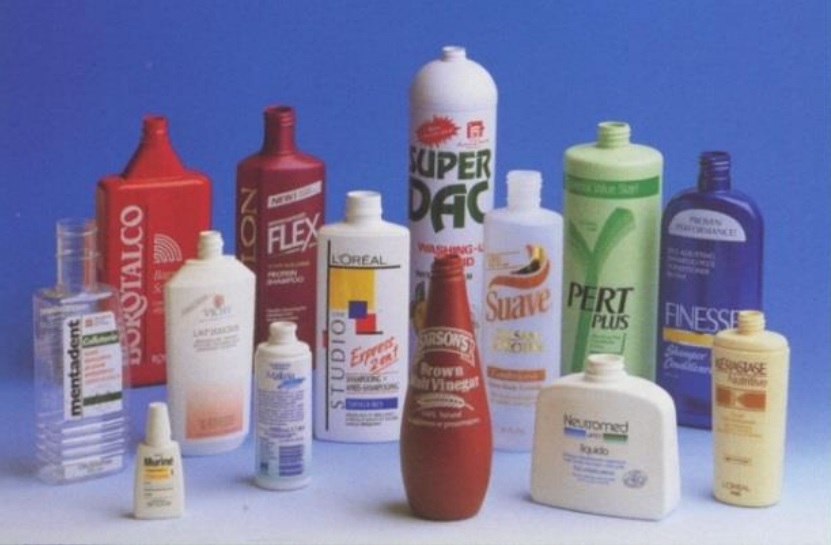

3. Scope of application: This machine is suitable for single color or multi-color screen
printing on the surface of containers with various shapes such as
round, oval, square, complex shapes etc. Container materials
include plastic, glass and metal, etc. Containers include cans,
bottles, cups, caps and hard tubes, etc.
4. Main functions: Speed transmission feeding function; Vacuum directional feeding
function of manipulator; Speed control stepper motor drive bottle
surface treatment function; Flame surface treatment function;
Prepositioning function; Adjustable pressure inflatable printing
function in the container; Automatic screen printing function;
Electric printing head lifting function is convenient for screen
loading and unloading; High strength American UV lamp curing
function(LED-UV curing fuction can be optional); Speed regulating
motor rotation function when cylindrical containers passing through
the UV; Manipulator vacuum discharging function; Discharging speed
control conveying function.
Safety
360° O.S.H.A. type protection shielding, with UV light absorbent
access window.
E-stop button.
Optional Items
Un-scrambler with bowl feeder and bowl hopper
