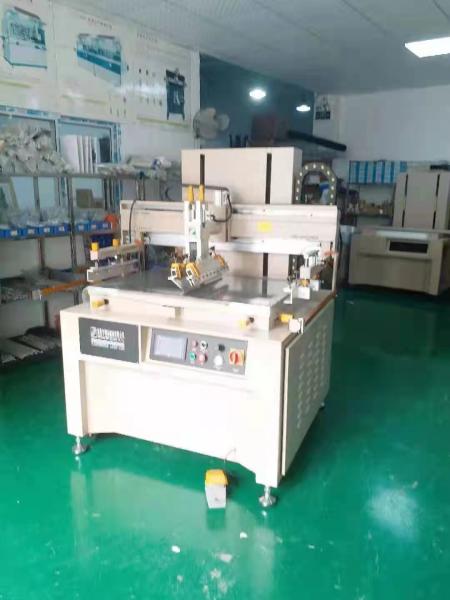

Aluminium Plate Flat Screen Printing Machine For Max Printing Area
600mm X 900mm
Machine features:
1. Vertical structure, PLC man-machine interface control,
touch-type setting of machine operating parameters.
2. Servo lift, servo printing design, fast and stable, precise
position.
3. Square guide rails are adopted for lifting, sliding and printing
head to ensure accurate printing
4. A variety of printing operation mode, adjustable speed, fast
operation, stable and smooth, precise positioning.
5. Precision guide rail printing head, the printing head can be
stretched back and forth, so that the printing ink layer is more uniform and easier to pick and place the
workpiece
6. Printing stroke and printing thickness are set on the touch
screen, and the worktable is fine-tuned and self-locked, which is convenient for adjustment.
7. The design of lifting and super long stroke makes it easy to
pick and place the work piece.
8. It has the functions of inching, single cycle, and automatic,
easy to switch.
9. Various emergency safety devices. Ensure the safety of
operators.
10. Starting method: PLC or foot switch
Application:
SBF70100-D is suitable for high precision plane printing of various materials,
especially for high precision printing of circuit board. Such as: metal, glass, ceramic, plastic, wood, leather and other
materials. Widely used in: electronic appliances, advertising, packag
printing, sports equipment, toys, stationery gifts and other
industries. Products such as all kinds of glass, PCB, LCD, liquid green oil,
cold light, film, keyboard, acrylic, mobile phone panel, touch
panel, light guide plate, diffusion plate nameplate, ceramics and
other products precision plane screen printing
Specification:
Max.printing area | L900mm*W600mm |
Max screen frame size | L1000mm*W700mm |
Max thickness of article | 200mm |
Positional accuracy | less than 0.02mm |
Power supply | 220V 50HZ |
Air pressure | 5-7 BAR 20L/min |
Machine size | 1130*1360*1700mm |
Machine weight | 380kg |
Printing speed | 900 PPH (It will be different according to different articles) |
Remark: This machine is a semi-automatic machine, we can use
manpower to do feeding and discharging, and put on shelf for
natural drying. We also can design according to customer's
requirements to decrease manpower----automatic feeding, conveyor
transmission, auto-register, printing and auto transmission to IR curing machine
for drying.
