Plastic Bottle & Jar Printer Modular Cylindrical Screen Printing
Machine 100pcs/Min
Features:

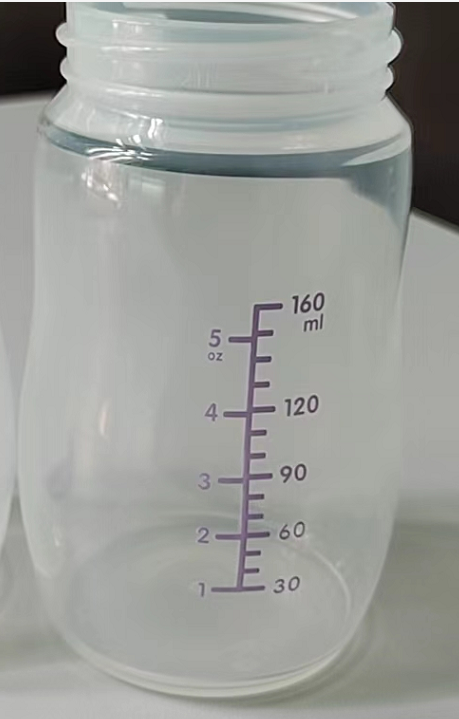

SL1466: The automatic printer can print on cylindrical plastic
bottles with different colors of UV inks. Specially developed for
round bottle printing, the debugging speed is 50% faster than
traditional models, and simple to operate.
The machine adopts a modular combined structure, each module
includes flame treating, screen printing and UV curing functions,
and the linear connection can realize a maximum of 8-color
integrated production line.
The machine can be connected to foil stamping or labeling modules
to become a multi-functional printing production line such as silk
screen printing with foil stamping or labeling; it can also be
connected to a visual product detection module after printing to
replace manual inspection.
The feeding conveyor can be connected directly with the bottle
making equipment, or it can be connected to the automatic bottle
unscrambler instead of manual feeding. After printing process, the
discharging can be connected to a bagging machine to save labors.
Technical Specifications
| Machine running speed | Up to 100pcs/min |
| Product height | 20-300mm |
| Round bottle diameter | 20-120mm |
| Maximum printing area | length 300* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
| Rated power | 7KW(1 color ) * N colors |
| Machine weight | Main machine-1200kgs; Auxiliary machine-1000kgs |
| Machine size | Main machine-L 2900mm * W 1200mm * H 2000mm(excluding feeding and
uploading convey belt) Auxiliary machine-L 1900mm * W 1200mm * H 2000mm |
Main functions:
Speed transmission feeding function; Vacuum directional feeding
function of manipulator; Main engine speed regulating motor drive
surface treatment function; Electrostatic dust removal function;
Flame surface treatment function; Prepositioning function;
Adjustable pressure inflatable printing function in the container;
Automatic screen printing function; Electric printing head lifting
function is convenient for screen loading and unloading; Screen
electric lift easy to wipe the screen function; High strength
American UV lamp curing function(LED-UV curing fuction can be
optional); Speed regulating motor rotation function when
cylindrical containers passing through the UV; Manipulator vacuum
discharging function; Discharging speed control conveying function.
