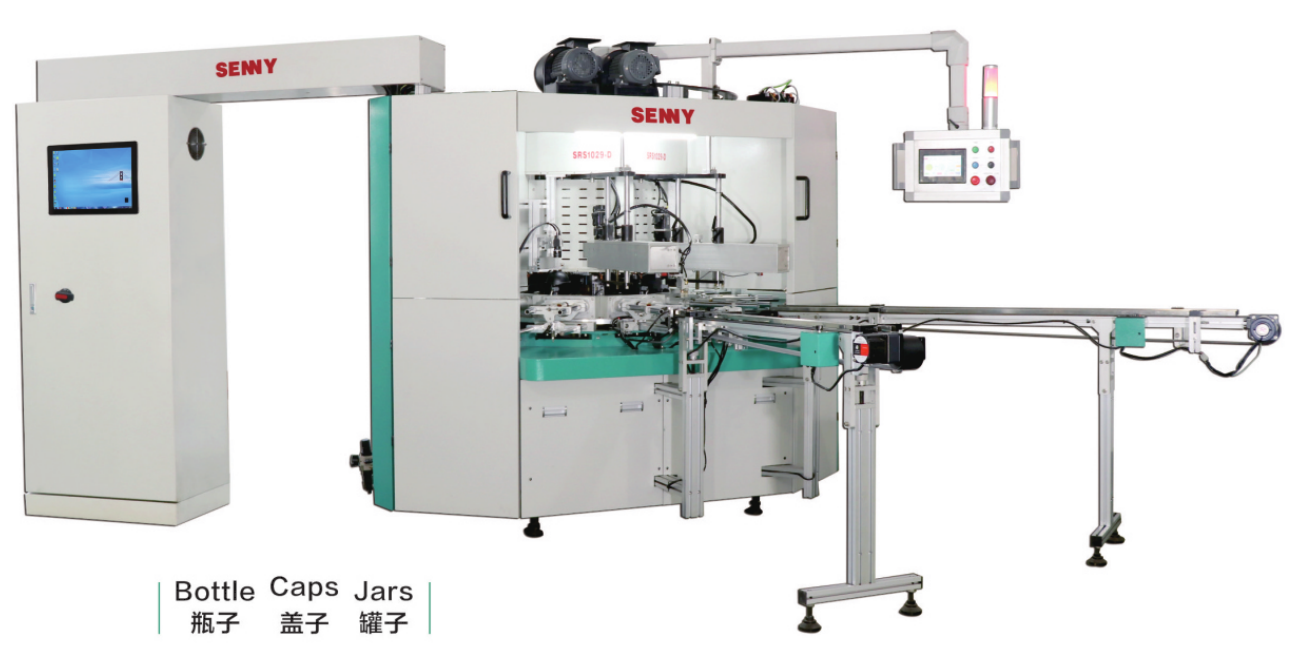

Irregular Shape Multicolor Screen Printing Machine 5 Colors
Complicated-Shape Bottles, Caps, Jars Printer Machinery
Catalog
04_compressed.pdf
Can this machine do screen printing and hot stamping together? 1
station or multiple stations?
Application:
The machine is multifunctional rotary multicolor screen printing
machine, can be configurated with hot foil stamping device. It is
mainly used to print the patterns and words on complex shapes
bottles, jars and caps, such oval/square/conical and some irregular
shapes. Featuring with easy operation, accuracy positioning, highly
automation and fast in printing.
Technical Specifications
| Model | SRS1249-D5C |
| Printing stations | 5 (5 printing colors) |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air presser | 6-7 bar |
| Power | 380V 50/60HZ |
Features:
1. The innovative transmission makes it very steady in passing the
bottles, easy to shift between different types of bottles, easy to
operate.
2. This machine allows to print up to 5 colors or more, accurate
registration between colors, stable and reliable performance.
3. We adopt the imported PLC and touch screen display from OMRON,
PANASONIC, DELTA, with kinds of monitor system to ensure the
machine running stable at high speed.
4. According to the characteristics of products, this machine can
be equipped with kinds of functions such as automatic loading and
unloading, orientation, flame treatment, dedusting, automatic
registration, non-printing without bottles , and UV Curing system,
etc.
5. The main components are imported from USA, German and Japan to achieve the machine quality and stability of
printing.
6. Three languages such as Chinese, English and Spanish can be
choosed.
7. We can customize machine according to the special products.
Printing samples
