Automatic Multi-Functional Labeling Machine Single Side, Double
Sides And Circumferential Labeling
Applicable label: self adhesive label, self adhesive film,
electronic supervision code, bar code, etc;
Applicable products: articles requiring labeling on side plane,
side surface, large arc surface and circumference surface;
Application Industry: widely used in printing, cosmetics, food,
toys, daily chemicals, electronics, plastics, medicine and other
industries;
Application examples: shampoo flat bottle labeling, lubricating oil
flat bottle labeling, mineral water square bottle labeling, wine
labeling, etc.
Technical Specifications(The following are the technical parameters
of the standard model. Other special requirements and functions can
be customized):
| Model | SY500 | Labeling accuracy | ±1mm |
| Sticker length | 20mm～220mm | Sticker turning out speed | 5～25m/min |
| Sticker width | 20mm～150mm | Labeling speed | 30～150pcs/min |
| Product length | 20mm～250mm | Conveying speed | 5～35m/min |
| Product width | 30mm～90mm | Weight | 370kg |
| Product height | 60mm～280mm | Power voltage | 220V 50HZ |
| Product diameter | 40mm～110 mm | Power | 2KW |
| Sticker roll's external diameter | Φ280mm | Conveying oriention | fm left to side |
| Sticker roll's inner diameter | Φ76mm | Machine dimensions | 3000*1400*1600mm |

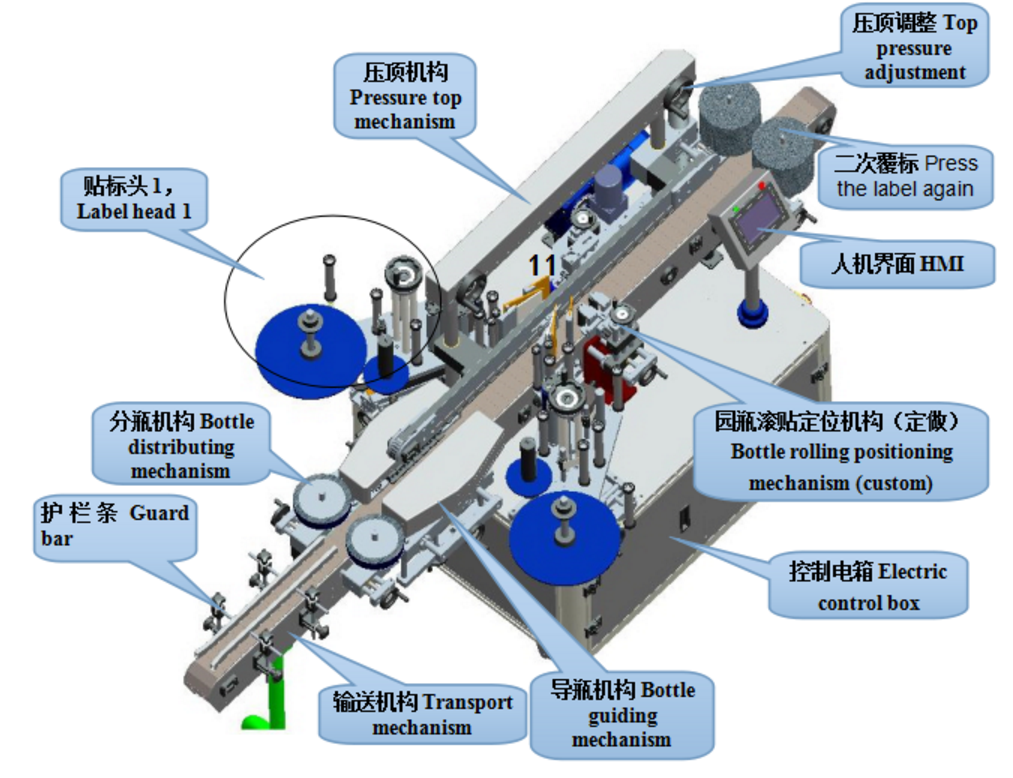

SY500 Working Process:
Product feeding --- transportation --- Guide product to a right
direction --- top pressing transportation --- detection ---
labeling --- pressing labels --- secondary pressing labeling (some
products) -- product output.
